Cal.6S30

Cal.6S30

Chronograph

Horizontal 3 Eyes

Add favorite +12

Product Information

Icon info

Features of 6S Series
・Quick Reset (by Heart Cam Reset System)
・Click Feeling Push Button Handling
・4 Beats Center Chrono Second Hand
・Balanceable Weight of Hands
Minute Hand Max. 1.00μNm
Center Chrono Second Hand Max. 0.40μNm
Other Small Hands Max.0.04μNm
・High Hand Standard
・TACHYMETER Available

Category: Chronograph > Large
Size: 15’’’
Height: 4.90mm
Accuracy: ±20 sec per month
Battery Life: 4 years
Balance Weight: Minute 1.00 μN.m
Chrono Second 0.40 μN.m
Small 0.04 μN.m

Function

Chrono min/sec, 1/20 second

Date

Design Sample

Minimum Case Size

Minimum Case Thickness 9.85mm

Please contact us via the form for enquiries regarding products, any customer services, and etc.

To Inquiry Form

Calendar Variation

CAL.6S30-00A

6S30-00A

Dial Drawing

Date

W.Position: 4H(SLA)
W.Shape: Square
Background: White
Letter: Black

Crown Position : 3H

Minimum unit order : 1000pcs per each model
Lead time(*production by order) : 2 months～

Feature

MIYOTA analog quartz movements

Introducing the world of analog quartz movement developed by MIYOTA.

MIYOTA mechanical movements

Mechanical movements that fascinate the world, developed by MIYOTA.

About MIYOTA: MIYOTA is trusted by leading brands all over the world by focusing on high quality, high precision, and customer support.

Downloads: You can dowload all the materials from here. Catalogue, spec sheet, parts list, instruction manual, and so on are available.

Contact Us: Please contact us via the form for enquiries regarding products, any customer services, and etc.

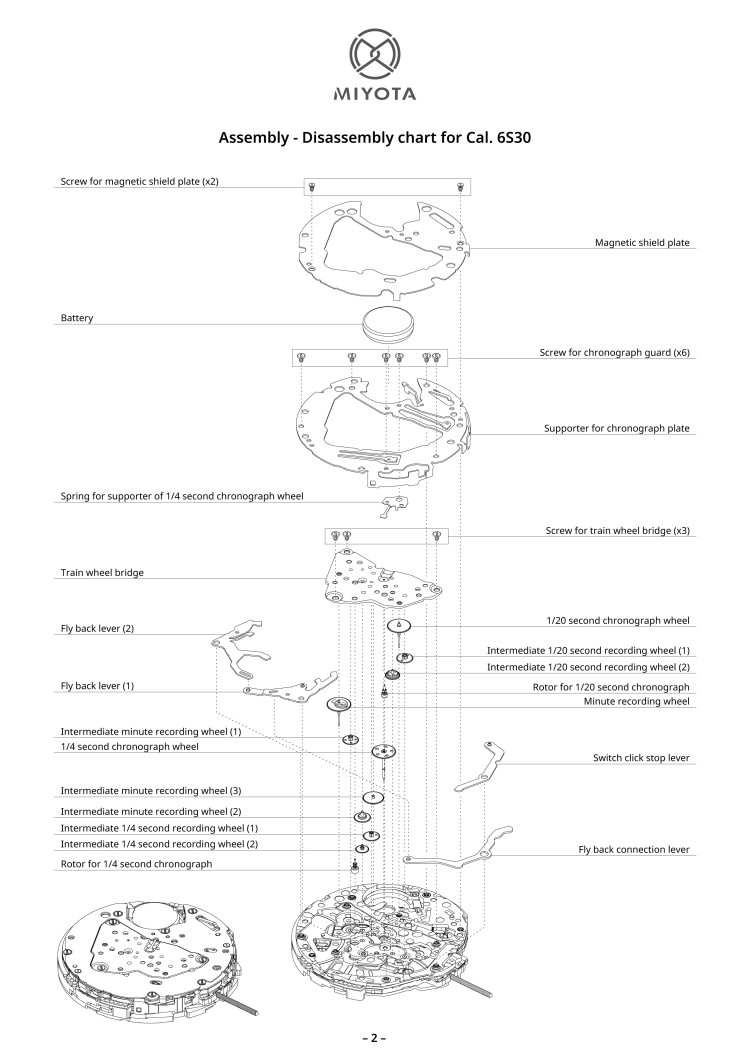

6S30 Parts List

THIRD WHEEL AND PINION: 017-142
SETTING STEM COVER: 019-361
FORTH WHEEL AND PINION: 023-267
SECOND WHEEL: 025-A06
CANNON PINION WITH DRIVING WHEEL: 028-A32
CLUTCH WHEEL: 064-970
SETTING STEM: 065-A13
SETTING LEVER: 067-999
YOKE: 071-997
MINUTE WHEEL AND PINION: 072-114
HOUR WHEEL: 075-A82
SETTING WHEEL: 076-720
SETTING LEVER SPRING: 077-997
FIFTH WHEEL AND PINION: 084-640
INTERMEDIATE MINUTE WHEEL(1): 087-268
INTERMEDIATE MINUTE WHEEL(2): 087-268
INTERMEDIATE 1/4 SECOND-RECORDING WHEEL(1): 087-B10
INTERMEDIATE 1/4 SECOND-RECORDING WHEEL(2): 087-B11
INTERMEDIATE MINUTE-RECORDING WHEEL(1): 087-B12
INTERMEDIATE MINUTE-RECORDING WHEEL(2): 087-B13
INTERMEDIATE MINUTE-RECORDING WHEEL(3): 087-B14
INTERMEDIATE 1/20 SECOND-RECORDING WHEEL(1): 087-B15
INTERMEDIATE DATE CORRECTING WHEEL(5): 087-B17
INTERMEDIATE 1/20 SECOND-RECORDING WHEEL(2): 087-B18
INTERMEDIATE DATE CORRECTING WHEEL(1): 087-B19
INTERMEDIATE DATE CORRECTING WHEEL(3): 087-B20
INTERMEDIATE DATE CORRECTING WHEEL(4): 087-B20
INTERMEDIATE DATE CORRECTING WHEEL(2): 087-B21
DATE DIAL DRIVING WHEEL: 103-A17
DATE DIAL: 108-L8XX
DATE JUMPER: 109-890
MAGNETIC SHIELD PLATE: 186-A40
STATOR: 190-A21
STATOR FOR 1/4 SECOND CHRONOGRAPH: 190-A22
STATOR FOR 1/20 SECOND CHRONOGRAPH: 190-A23
SPACER FOR SETTING STEM: 212-A64
CALENDAR CORRECTOR WHEEL: 213-619
SUPPORTER FOR PLATE COMPLETE: 226-A60
BATTERY CONNECTOR SPRING: 231-994
COIL UNIT: 246-147
1/4 SECOND CHRONOGRAPH COIL UNIT: 246-A18
1/20 SECOND CHRONOGRAPH COIL UNIT: 246-A19
1/4 SECOND CHRONOGRAPH WHEEL: 251-332
1/20 SECOND CHRONOGRAPH WHEEL: 251-333
FLY-BACK CONNECTION LEVER: 260-991
STOP LEVER FOR FIFTH WHEEL: 269-404
SWITCH CLICK STOP LEVER: 270-154
FLY-BACK LEVER(1): 270-157
FLY-BACK LEVER(2): 270-161
ELECTRIC CIRCUIT UNIT: 279-J60
BATTERY: 280-440
ROTOR FOR 1/4 SECOND CHRONOGRAPH: 285-A29
ROTOR FOR 1/20 SECOND CHRONOGRAPH: 285-A30
ROTOR: 285-A31
MINUTE RECORDING WHEEL: 291-222
DATE DIAL GUARD: 293-A24
TRAIN WHEEL BRIDGE: 701-H92
CENTER WHEEL COCK: 711-248
CALENDAR PLATE: 714-078
SUPPORTER FOR CHRONOGRAPH PLATE: 720-A02
SPRING FOR SUPPORTER OF 1/4 SECOND CHRONOGRAPH WHEEL: 903-A30
SCREW FOR SETTING LEVER SPRING: 922-166
SCREW FOR SETTING STEM COVER: 922-166
SCREW FOR COIL UNIT (X3): 923-112
SCREW FOR CENTER WHEEL COCK (X3): 923-980
SCREW FOR CHRONOGRAPH GURD(X6): 923-980
SCREW FOR TRAIN WHEEL BRIDGE (X3): 923-980
SCREW FOR ELECTRIC CIRCUIT (X3): 923-990
SCREW FOR DATE DIAL GUARD (X3): 929-650
SCREW FOR MAGNETIC SHIELD PLATE(X2): 930-650
SCREW FOR CALENDAR PLATE(X3): 935-201

Icon

Long battery life

Long battery life: Battery life longer than 4 years.

Parallel push button

Parallel push button: Push buttons can be set parallel for square-shaped watch case.

Shock detection

Shock detection: The SMART IC inside the movement will detect the external impact/shock and prevent hands' jumping. It will give you more flexibility for hands selection.

Super quick date adjusting

Super quick date adjusting: The date disc flips super quickly when the crown is turned for date adjusting.

Quick reset

Quick reset: The remarkable mechanism of Heart-shaped cam allows the two counters of second/minute chronograph to reset instantly. The center chronograph second hand is IC-controlled and reset smoothly.

4 Beats hand movement

4 Beats hand movement: Center chronograph hand sweeps in 1/4 second increments.

Super runner

Super runner: Watch users can take pleasure in the unique hand movements featuring a 1/20 second counter or 1/100 second counter at ultimate spead as a feature of professional chronograph.

Alarm

Alarm: The alarm will sound when the hour hand aligns with the alarm time indicator.

Click feeling of push button

Click feeling of push button: Watch users will notice the premium value of the watches from the click of push buttons.

Moon phase display

Moon phase display: A function to display waxing and waning of the moon.
Watch users can use the moon dial indication as a guide to the age or phase of the moon.

High Hand

High Hand: The height of the hand is higher than basic caliber.

Calendar Variation

Calendar Variation: Calendar Variation is available for this movement.
