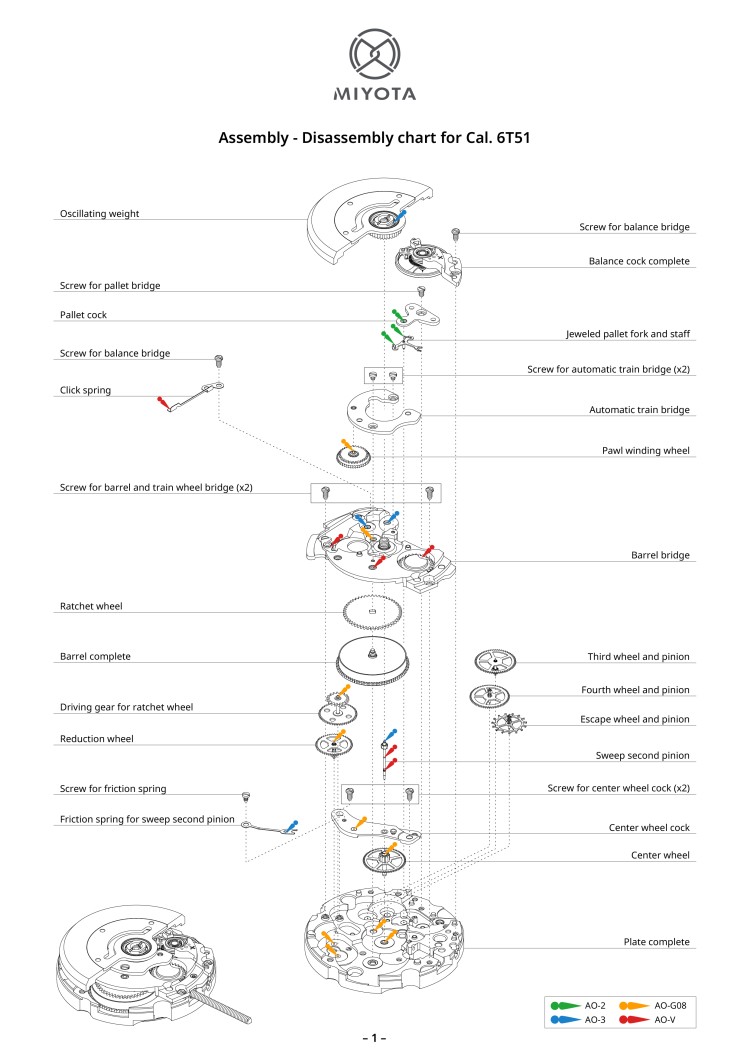

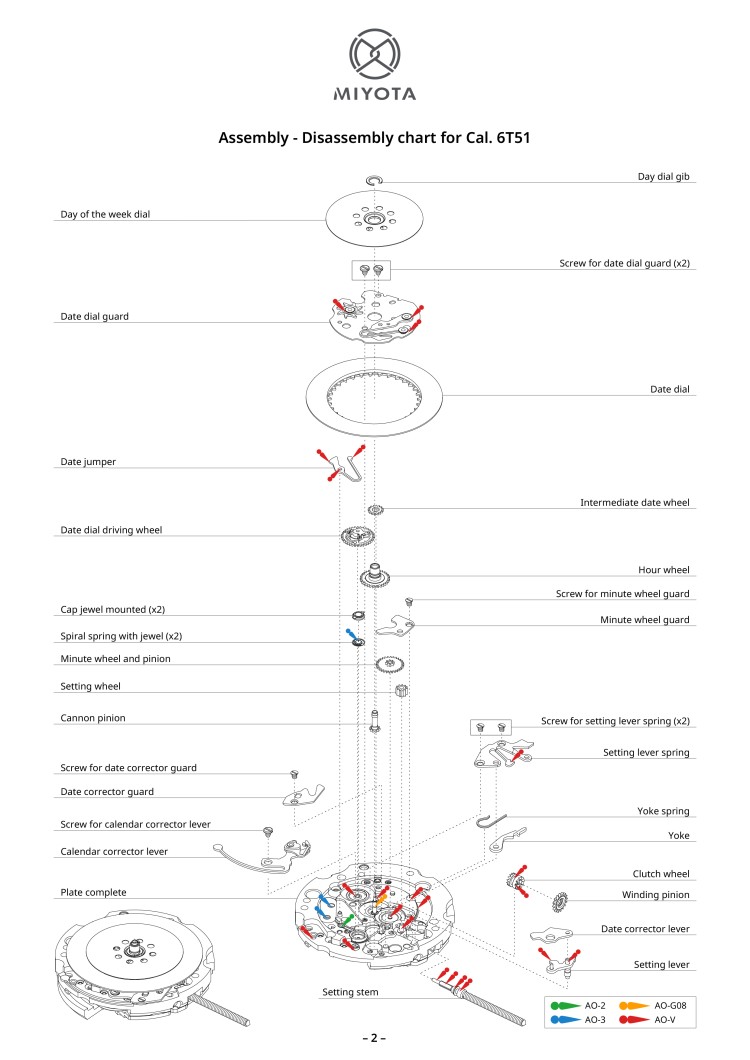

6T51 Gilt Parts List
- BARREL COMPLETE
- 001-590
- CENTER WHEEL
- 012-770
- THIRD WHEEL AND PINION
- 017-520
- FOURTH WHEEL AND PINION
- 023-700
- SWEEP SECOND PINION
- 025-410
- ESCAPE WHEEL AND PINION
- 032-840
- JEWELED PALLET FORK AND STAFF
- 035-420
- BALANCE WITH HAIRSPRING REGULATED
- 039-690
- RATCHET WHEEL
- 059-440
- WINDING PINION
- 063-200
- CLUTCH WHEEL
- 064-210
- SETTING STEM
- 065-117
- SETTING LEVER
- 067-142
- YOKE
- 071-220
- MINUTE WHEEL AND PINION
- 072-340
- HOUR WHEEL
- 075-760
- SETTING WHEEL
- 076-270
- SETTING LEVER SPRING
- 077-390
- MINUTE WHEEL GUARD
- 079-250
- CASING CLAMP(x2) (OPTION)
- 082-070
- REDUCTION WHEEL
- 088-150
- CAP JEWEL MOUNTED(x2)
- 094-240
- SPIRAL SPRING WITH JEWEL(x2)
- 098-040
- INTERMEDIATE DATE WHEEL
- 100-200
- DATE DIAL DRIVING WHEEL
- 103-830
- DATE DIAL
- 108-9400
- DATE JUMPER
- 109-420
- CALENDAR CORRECTOR LEVER
- 116-130
- DATE CORRECTOR GUARD
- 117-130
- OSCILLATING WEIGHT
- 119-222
- DRIVING GEAR FOR RATCHET WHEEL
- 138-120
- PAWL WINDING WHEEL
- 141-210
- DAY DIAL GIB
- 178-090
- DATE CORRECTOR LEVER
- 271-090
- DAY OF THE WEEK DIAL
- 308-53XX
- MOVEMENT HOLDER (PLASTIC)
- 500-6621
- DIAL SUPPORT RING (OPTION)
- 502-1444
- BARREL BRIDGE
- 701-828
- AUTOMATIC TRAIN BRIDGE
- 706-068
- PALLET COCK
- 708-078
- BALANCE COCK COMPLETE
- 710-184
- CENTER WHEEL COCK
- 711-052
- DATE DIAL GUARD
- 713-083
- YOKE SPRING
- 902-260
- FRICTION SPRING FOR SWEEP SEC PINION
- 903-360
- CLICK SPRING
- 903-950
- SCREW FOR AUTOMATIC TRAIN BRIDGE(x2)
- 921-250
- SCREW FOR PALLET BRIDGE
- 922-180
- SCREW FOR BARREL AND TRAIN WHEEL BRIDGE (x3)
- 922-600
- SCREW FOR BALANCE BRIDGE
- 922-600
- SCREW FOR CENTER WHEEL COCK (x2)
- 922-600
- SCREW FOR DATE DIAL GUARD (x2)
- 922-620
- SCREW FOR CALENDAR CORRECTOR LEVER
- 922-620
- SCREW FOR CASING CLAMP(x2) (OPTION)
- 923-140
- SCREW FOR STUD
- 927-020
- SCREW FOR DIAL (x2)
- 928-150
- SCREW FOR SETTING LEVER SPRING(x2)
- 929-080
- SCREW FOR MINUTE WHEEL GUARD
- 929-080
- SCREW FOR DATE CORRECTOR GUARD
- 929-080
- SCREW FOR FRICTION SPRING
- 933-050
- LONGER SETTING STEM (22.55mm)
- 065-489
Icon
- Long battery life
- Battery life longer than 4 years.
- Parallel push button
- Push buttons can be set parallel for square-shaped watch case.
- Shock detection
- The SMART IC inside the movement will detect the external impact/shock and prevent hands' jumping. It will give you more flexibility for hands selection.
- Super quick date adjusting
- The date disc flips super quickly when the crown is turned for date adjusting.
- Quick reset
- The remarkable mechanism of Heart-shaped cam allows the two counters of second/minute chronograph to reset instantly. The center chronograph second hand is IC-controlled and reset smoothly.
- 4 Beats hand movement
- Center chronograph hand sweeps in 1/4 second increments.
- Super runner
- Watch users can take pleasure in the unique hand movements featuring a 1/20 second counter or 1/100 second counter at ultimate spead as a feature of professional chronograph.
- Alarm
- The alarm will sound when the hour hand aligns with the alarm time indicator.
- Click feeling of push button
- Watch users will notice the premium value of the watches from the click of push buttons.
- Moon phase display
- A function to display waxing and waning of the moon.
Watch users can use the moon dial indication as a guide to the age or phase of the moon.
- High Hand
- The height of the hand is higher than basic caliber.
- Calendar Variation
- Calendar Variation is available for this movement.
