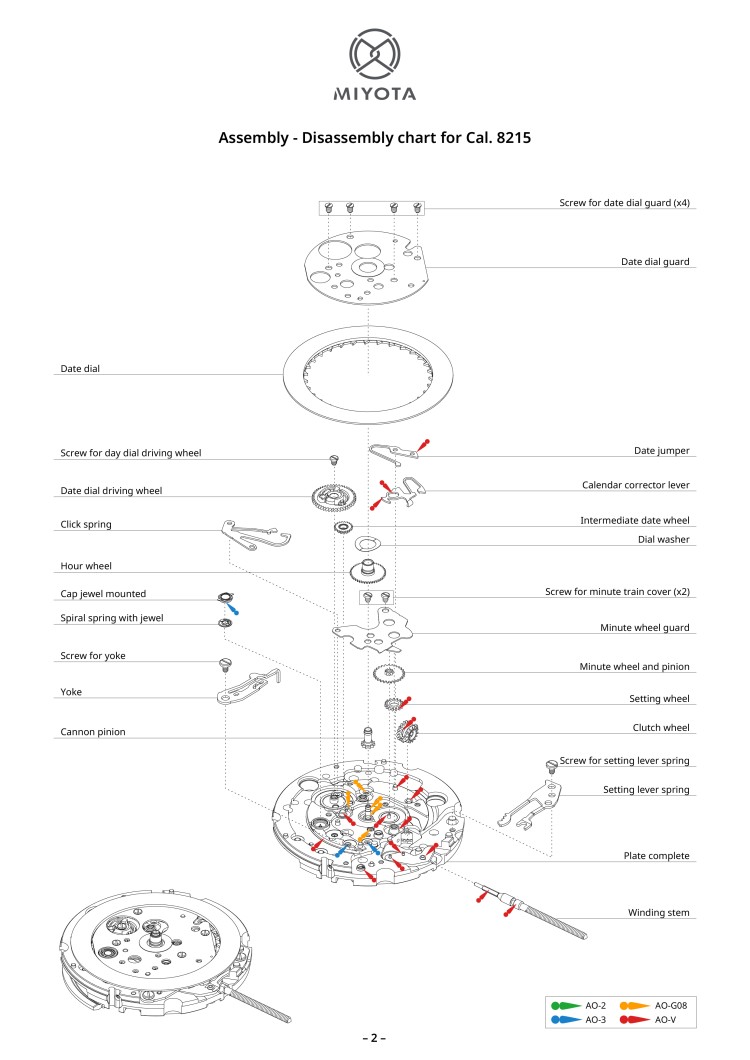

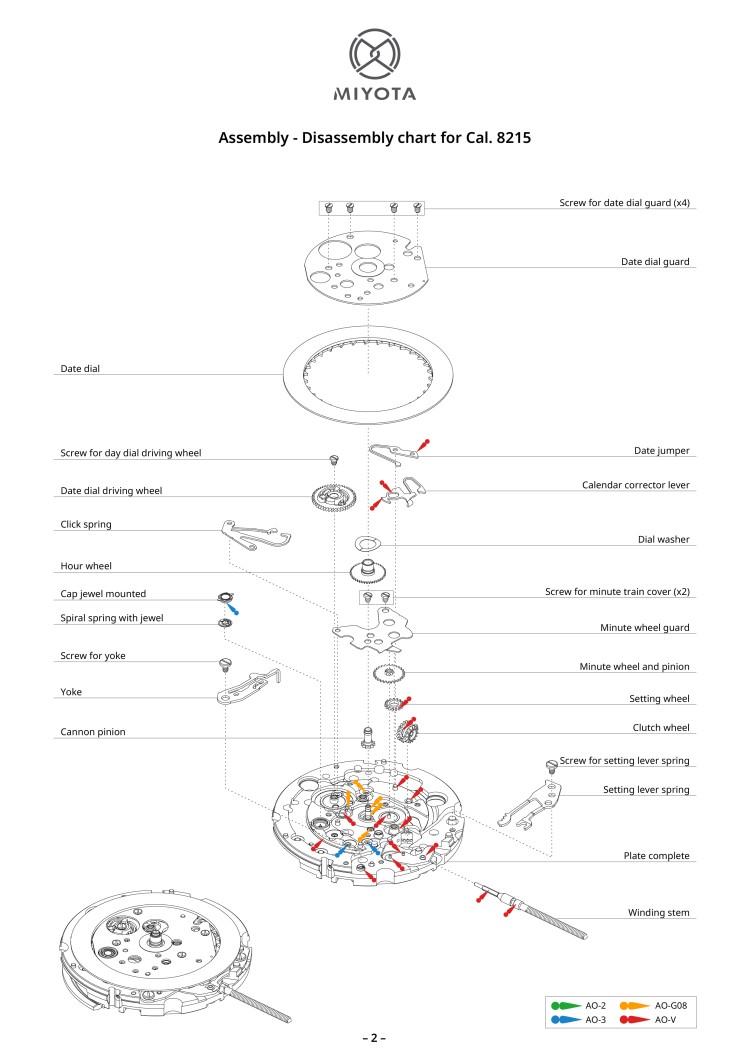

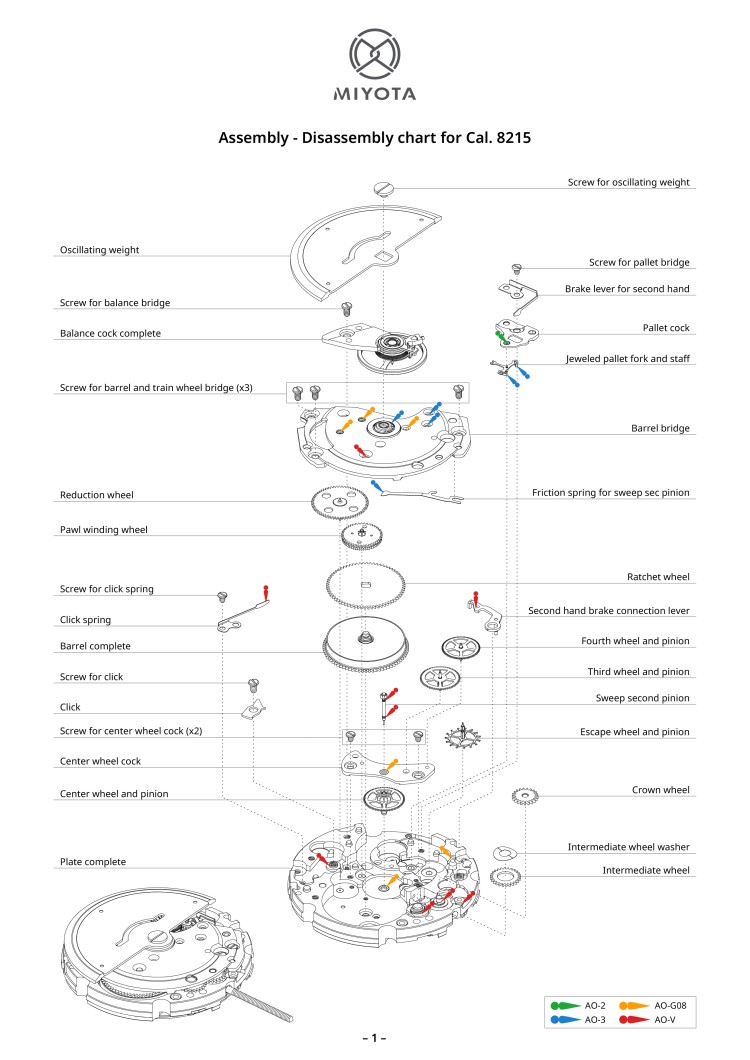

8215 Parts List
- BARREL COMPLETE
- 001-870
- CENTER WHEEL ＆ PINION W/T CANNON PINION
- 012-116
- THIRD WHEEL AND PINION
- 017-760
- FOURTH WHEEL AND PINION
- 023-940
- SWEEP SECOND PINION
- 025-670
- ESCAPE WHEEL AND PINION
- 032-106
- JEWELED PALLET FORK AND STAFF
- 035-560
- BALANCE WITH HAIRSPRING REGULATED
- 039-102
- CROWN WHEEL
- 058-360
- RATCHET WHEEL
- 059-560
- CLICK
- 060-390
- CLUTCH WHEEL
- 064-450
- WINDING STEM
- 065-212
- SETTING LEVER
- 067-860
- YOKE
- 071-A04
- MINUTE WHEEL AND PINION
- 072-520
- HOUR WHEEL
- 075-124
- SETTING WHEEL
- 076-430
- SETTING LEVER SPRING
- 077-680
- WASHER FOR WHEEL
- 078-140
- INTERMEDIATE WHEEL WASHER
- 078-150
- MINUTE WHEEL GUARD
- 079-600
- CASING CLAMP(x2) (OPTION)
- 082-060
- INTERMEDIATE WHEEL
- 087-250
- REDUCTION WHEEL
- 088-120
- UPPER CAP JEWEL MOUNTED
- 094-010
- LOWER CAP JEWEL MOUNTED
- 094-040
- SPIRAL SPRING WITH JEWEL (x2)
- 098-090
- INTERMEDIATE DATE WHEEL
- 100-170
- DATE DIAL DRIVING WHEEL
- 103-650
- DATE DIAL
- 108-9500
- DATE JUMPER
- 109-350
- CALENDAR CORRECTOR LEVER
- 116-300
- OSCILLATING WEIGHT
- 119-246
- PAWL WINDING WHEEL
- 141-190
- DATE DIAL GUARD
- 176-150
- MOVEMENT HOLDER (PLASTIC)
- 500-710
- DIAL SUPPORT RING (OPTION)
- 502-0085
- BARREL BRIDGE
- 701-263
- PALLET COCK
- 708-095
- BALANCE COCK COMPLETE
- 710-159
- CENTER WHEEL COCK
- 711-074
- FRICTION SPRING FOR SWEEP SEC PINION
- 903-690
- CLICK SPRING
- 903-700
- DATE CORRECTOR SPRING
- 903-A31
- SCREW FOR STUD
- 920-010
- SCREW FOR CENTER WHEEL COCK (x2)
- 923-600
- SCREW FOR CLICK SPRING
- 923-600
- SCREW FOR DATE DIAL DRIVING WHEEL
- 923-600
- SCREW FOR PALLET BRIDGE
- 923-600
- SCREW FOR DATE DIAL GUARD (x4)
- 923-630
- SCREW FOR MINUTE TRAIN COVER (x2)
- 923-630
- SCREW FOR SETTING LEVER SPRING
- 923-640
- SCREW FOR YOKE
- 923-640
- SCREW FOR BARREL AND TRAIN WHEEL BRIDGE (x3)
- 924-460
- SCREW FOR BALANCE BRIDGE
- 924-460
- SCREW FOR CASING CLAMP(x2) (OPTION)
- 924-460
- SCREW FOR CLICK
- 924-460
- SCREW FOR OSCILLATING WEIGHT
- 925-590
- SCREW FOR DIAL (x2)
- 929-610
- ** LONGER SETTING STEM(24.0MM) **
- 065-A06
